Module view - Java Pet Store Sample Application
Element Catalog
- <
<app>
> admin: Applicatin administration application. - <
<app>
> opc: Order Processing Center. - <
<app>
> supplier: Supplier dispatching center. - waf: Web Application Framework. Library that provides a facade to <
<app>
petstore to manipulate events, user actions and application controllers - components: library that provides the core (shared) components for the applications.
- <
<app>
petstore: ecommerce application
Parent View
This view has no parent view
Related Views
Module view - <
<app>
> petstore
High-level view
---- A detailed view
Element Catalog

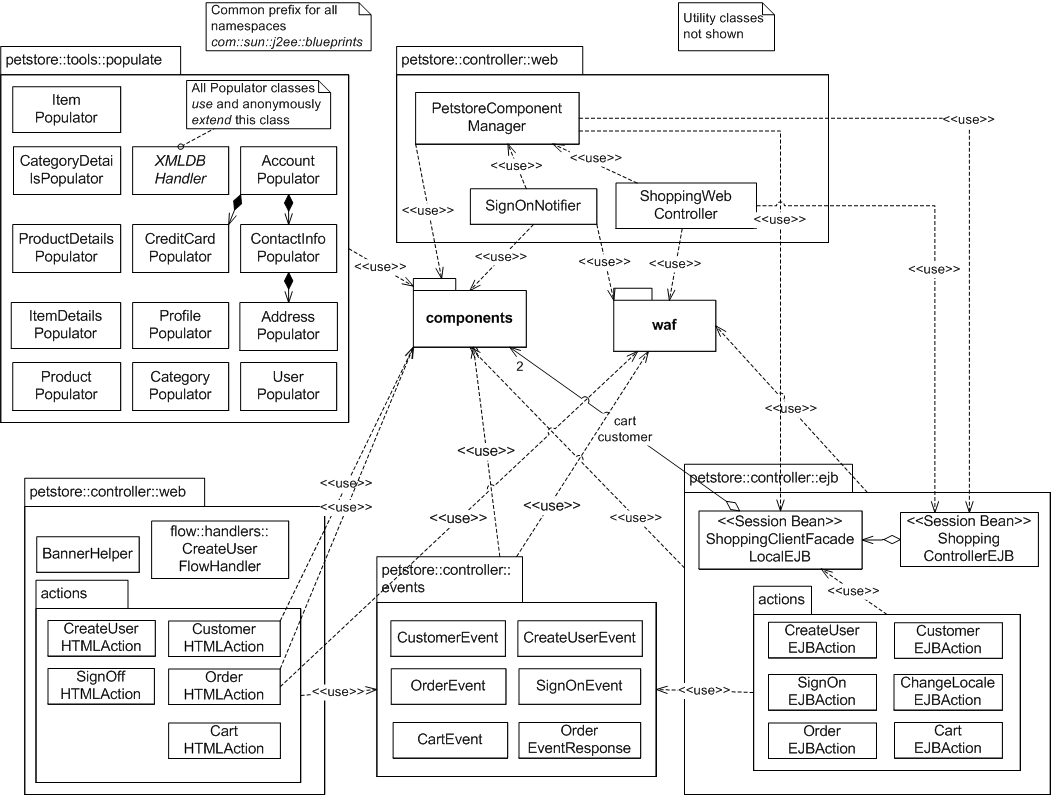

- petstore::controller::ejb::actions ...
- petstore::controller::ejb::events ...
- petstore::controller::ejb::ShoppingClientFacade
- petstore::controller::ejb::ShoppingControllerEJB
- petstore::controller::web::actions ...
- petstore::controller::web::flow::handlers::CreateUserFlowHandler
- petstore::controller::web::PetstoreComponentManager
- petstore::controller::web::ShoppingWebController
- petstore::controller::web::SignonModifier
- petstore::controller::web::tools::populate package
Parent view
Related Views
Back to the Module view - Java Pet Store Sample Application
Module view - components
High-level view
Detailed view
Element Catalog
- address
- catalog
- contactinfo
- creditcard
- customer
- encondingfilter
- lineitem
- mailer
- processmanager
- purchaseorder
- servicelocator
- signon
- supplierpo
- uidgen: unique id generator
Parent view
Related Views
Back to the Module view - Java Pet Store Sample Application
Generalization view - <
<app>
> PetStore
Generalization
Element Catalog
Please refer to the catalogs of <
<app>
> petstore and waf
Parent view
Related Views
Back to the Module view - Java Pet Store Sample Application
Module view - WAF
WAF|Elements within the WAF package
Element Catalog
- servicelocator::web belongs to the 'servicelocator' package of the components module.
- waf::controller::web::action package
- waf::controller::web::DefaultComponentManager
- waf::controller::web::DefaultWebController
- waf::controller::web::flow package
- waf::controller::web::flow::ScreenFlowManager
- waf::controller::web::EventMapping
- waf::controller::web::MainServlet
- waf::controller::web::RequestProcessor
- waf::controller::ejb::action
- waf::controller::ejb::EJBControllerLocalEJB
- waf::controller::ejb::StateMachine
- waf::event package that includes all the base classes that handle EJB and Web tier base events
Parent view
Related Views
- Module view - components
- Detailed view of the waf::event package.
Back to the Module view - Java Pet Store Sample Application
Views for other <
<app>
>
<app>
>) views: Order Processing Center (OPC), Supplier, and Admin console.
